The language server does its best to infer types through contextual analysis, however, sometimes manual documentation is necessary to improve completion and signature information. It does this through LuaCATS (Lua Comment And Type System) annotations, which are based off of EmmyLua annotations .

Annotations are prefixed with ---, like a Lua comment with one extra dash.

Warning

LuaCATS annotations are no longer cross-compatible with EmmyLua annotations as of v3

Annotation Formatting

Annotations support most of the markdown syntax . More specifically, you can use:

  • headings
  • bold text
  • italic text
  • struckthrough text
  • ordered list
  • unordered list
  • blockquote
  • code
  • code block
  • horizontal rule
  • link
  • image

There are many ways to add newlines to your annotations. The most bulletproof way is to simply add an extra line of just ---, although this functions like a paragraph break, not a newline.

The below methods can be added to the end of a line:

  • HTML <br> tag (recommended)
  • \n newline escape character
  • Two trailing spaces (may be removed by formatting tools)
  • Markdown backslash \ ( not recommended )

Referring to symbols

As of v3.9.2 you can refer to symbols from your workspace in markdown descriptions using markdown links. Hovering the described value will show a hyperlink that, when clicked, will take you to where the symbol is defined.

lua
---@alias MyCustomType integer

---Calculate a value using [my custom type](lua://MyCustomType)
function calculate(x) end

Tips

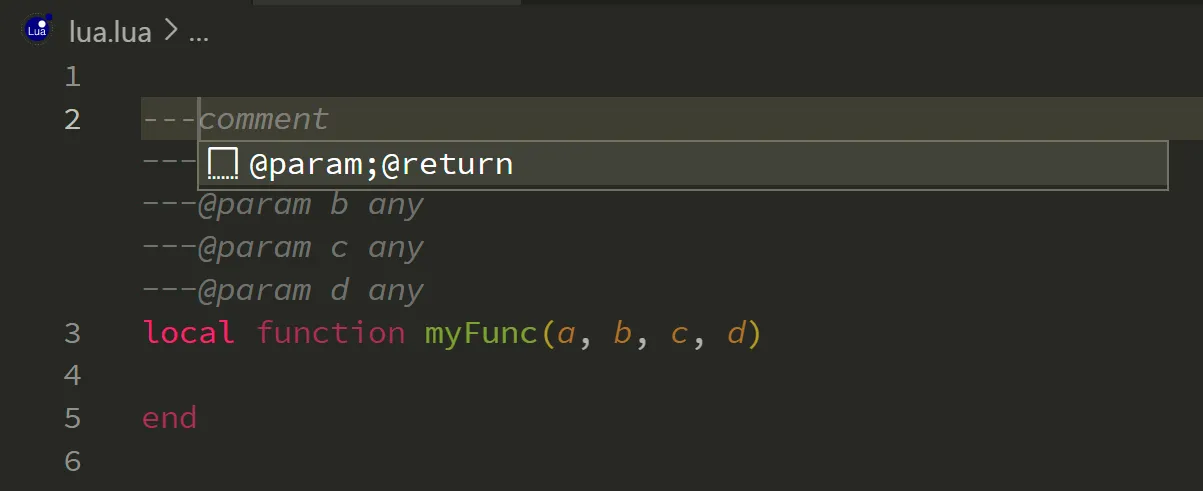

  • If you type --- one line above a function, you will receive a suggested snippet that includes @param and @return annotations for each parameter and return value found in the function. Snippet being used in VS Code

Documenting Types

Properly documenting types with the language server is very important and where a lot of the features and advantages are. Below is a list of all recognized Lua types (regardless of version in use):

  • nil
  • any
  • boolean
  • string
  • number
  • integer
  • function
  • table
  • thread
  • userdata
  • lightuserdata

You can also simulate classes and fields and even create your own types.

Adding a question mark (?) after a type like boolean? or number? is the same as saying boolean|nil or number|nil. This can be used to specify that something is either a specified type or nil. This can be very useful for function returns where a value or nil can be returned.

Below is a list of how you can document more advanced types:

TypeDocument As:
Union TypeTYPE_1 | TYPE_2
ArrayVALUE_TYPE[]
Tuple[VALUE_TYPE, VALUE_TYPE]
Dictionary{ [string]: VALUE_TYPE }
Key-Value Tabletable<KEY_TYPE, VALUE_TYPE>
Table literal{ key1: VALUE_TYPE, key2: VALUE_TYPE }
Functionfun(PARAM: TYPE): RETURN_TYPE

Unions may need to be placed in parentheses in certain situations, such as when defining an array that contains multiple value types:

Lua
---@type (string | integer)[]
local myArray = {}

Understanding This Page

To get an understanding of how to use the annotations described on this page, you'll need to know how to read the Syntax sections of each annotation.

SymbolMeaning
<value_name>A required value that you provide
[value_name]Everything inside is optional
[value_name...]This value is repeatable
value_name | value_nameThe left or right side are valid

Any other symbols are syntactically required and should be copied verbatim.

If this is confusing, take a look at a couple examples under an annotation and it should make more sense.

Annotations List

Below is a list of all annotations recognized by the language server:

@alias

An alias can be used to create your own type. You can also use it to create an enum that does not exist at runtime. For an enum that does exist at runtime, see @enum.

Syntax

---@alias <name> <type>

Lua
---@alias <name>
---| '<value>' [# description]
Note

The above pipe character (|) on the left is necessary for each line and does not signify an "or".

Examples

Simple alias
Lua
---@alias userID integer The ID of a user
Custom Type
Lua
---@alias modes "r" | "w"
Custom Type with Descriptions
Lua
---@alias DeviceSide
---| '"left"' # The left side of the device
---| '"right"' # The right side of the device
---| '"top"' # The top side of the device
---| '"bottom"' # The bottom side of the device
---| '"front"' # The front side of the device
---| '"back"' # The back side of the device

---@param side DeviceSide
local function checkSide(side) end
Literal Custom Type
Lua
local A = "Hello"
local B = "World"

---@alias myLiteralAlias `A` | `B`

---@param x myLiteralAlias
function foo(x) end
Literal Custom Type with Descriptions
Lua
local A = "Hello"
local B = "World"

---@alias myLiteralAlias `A` | `B`

---@param x myLiteralAlias
function foo(x) end

@as

Force a type onto an expression.

Warning

This annotation cannot be added using ---@as <type> it must be done like --[[@as <type>]].

Note

When marking an expression as an array, such as string[], you must use --[=[@as string[]]=] due to the extra square brackets causing parsing issues.

Syntax

--[[@as <type>]]
Note

The square brackets in the above syntax definition do not refer to it being optional. Those square brackets must be used verbatim.

Examples

Override Type
Lua
---@param key string Must be a string
local function doSomething(key) end

local x = nil

doSomething(x --[[@as string]])

@async

Mark a function as being asynchronous. When hint.await is true, functions marked with @async will have an await hint displayed next to them when they are called. Used by diagnostics from the await group.

Syntax

---@async

Examples

Mark Function Async
Lua
---@async
---Perform an asynchronous HTTP GET request
function http.get(url) end

@cast

Cast a variable to a different type or types.

Syntax

---@cast <value_name> [+|-]<type|?>[, [+|-]<type|?>...]

Examples

Simple Cast
Lua
---@type integer | string
local x

---@cast x string
print(x) --> x: string
Add Type
Lua
---@type integer
local x

---@cast x +boolean
print(x) --> x: integer | boolean
Remove Type
Lua
---@type integer|string
local x

---@cast x -integer
print(x) --> x: string
Cast Multiple Types
Lua
---@type string
local x --> x: string

---@cast x +boolean, +number
print(x) --> x:string | boolean | number
Cast Possibly nil
Lua
---@type string
local x

---@cast x +?
print(x) --> x:string?

@class

Define a class. Can be used with @field to define a table structure. Once a class is defined, it can be used as a type for parameters, returns, and more. A class can also inherit one or more parent classes. Marking the class as (exact) means fields cannot be injected after the definition.

Syntax

---@class [(exact)] <name>[: <parent>[, <parent>...]]

Examples

Define a Class
Lua
---@class Car
local Car = {}
Class Inheritance
Lua
---@class Vehicle
local Vehicle = {}

---@class Plane: Vehicle
local Plane = {}
Create exact class
Lua
---@class (exact) Point
---@field x number
---@field y number
local Point = {}
Point.x = 1 -- OK
Point.y = 2 -- OK
Point.z = 3 -- Warning
How the table Class is Implemented
Lua
---@class table<K, V>: { [K]: V }

@deprecated

Mark a function as deprecated. This will trigger the deprecated diagnostic, displaying it as struck through.

Syntax

---@deprecated

Examples

Mark a Function as Deprecated
Lua
---@deprecated
function outdated() end

@diagnostic

Toggle diagnostics for the next line, current line, or whole file.

Syntax

---@diagnostic <state>:<diagnostic>[, diagnostic...]

state options:

  • disable-next-line (Disable diagnostic on the following line)
  • disable-line (Disable diagnostic on this line)
  • disable (Disable diagnostic in this file)
  • enable (Enable diagnostic in this file)

Examples

Disable Diagnostic on Next Line
Lua
---@diagnostic disable-next-line: unused-local
Enable Spell Checking in this File
Lua
---@diagnostic enable:spell-check

@enum

Mark a Lua table as an enum, giving it similar functionality to @alias, only the table is still usable at runtime. Adding the (key) attribute will use the enum's keys instead of its values.

Original Feature Request

Syntax

---@enum [(key)] <name>

Examples

Define Table as Enum
Lua
---@enum colors
local COLORS = {
	black = 0,
	red = 2,
	green = 4,
	yellow = 8,
	blue = 16,
	white = 32
}

---@param color colors
local function setColor(color) end

setColor(COLORS.green)
Define Table Keys as Enum
Lua
---@enum (key) Direction
local direction = {
    LEFT = 1,
    RIGHT = 2,
}

---@param dir Direction
local function move(dir)
    assert(dir == "LEFT" or dir == "RIGHT")

    assert(direction[dir] == 1 or direction[dir] == 2)
    assert(direction[dir] == direction.LEFT or direction[dir] == direction.RIGHT)
end

move("LEFT")

@field

Define a field within a table. Should be immediately following a @class. As of v3.6, you can mark a field as private, protected, public, or package.

Syntax

---@field [scope] <name[?]> <type> [description]

It is also possible to allow any key of a certain type to be added using the below:

---@field [scope] [<type>] <type> [description]

Note

The square brackets around the first type above must be copied verbatim. Also, any named fields must be defined first. See the Typed Field example below.

Examples

Simple Documentation of a Class
Lua
---@class Person
---@field height number The height of this person in cm
---@field weight number The weight of this person in kg
---@field firstName string The first name of this person
---@field lastName? string The last name of this person
---@field age integer The age of this person

---@param person Person
local function hire(person) end
Mark Field as Private
Lua
---@class Animal
---@field private legs integer
---@field eyes integer

---@class Dog:Animal
local myDog = {}

---Child class Dog CANNOT use private field legs
function myDog:legCount()
	return self.legs
end
Mark Field as Protected
Lua
---@class Animal
---@field protected legs integer
---@field eyes integer

---@class Dog:Animal
local myDog = {}

---Child class Dog can use protected field legs
function myDog:legCount()
	return self.legs
end
Typed Field
Lua
---@class Numbers
---@field named string
---@field [string] integer
local Numbers = {}

@generic

Generics allow code to be reused and serve as a sort of "placeholder" for a type. Surrounding the generic in backticks (`) will capture the value and use it for the type. Generics are still WIP .

Syntax

---@generic <name> [:parent_type] [, <name> [:parent_type]]

Examples

Generic Function
Lua
---@generic T : integer
---@param p1 T
---@return T, T[]
function Generic(p1) end

-- v1: string
-- v2: string[]
local v1, v2 = Generic("String")

-- v3: integer
-- v4: integer[]
local v3, v4 = Generic(10)
Capture with Backticks
Lua
---@class Vehicle
local Vehicle = {}
function Vehicle:drive() end

---@generic T
---@param class `T` # the type is captured using `T`
---@return T       # generic type is returned
local function new(class) end

-- obj: Vehicle
local obj = new("Vehicle")
Array Class Using Generics
Lua
---@class Array<T>: { [integer]: T }

---@type Array<string>
local arr = {}

-- Warns that I am assigning a boolean to a string
arr[1] = false

arr[3] = "Correct"

See Issue #734

Dictionary Class Using Generics
Lua
---@class Dictionary<T>: { [string]: T }

---@type Dictionary<boolean>
local dict = {}

-- no warning despite assigning a string
dict["foo"] = "bar?"

dict["correct"] = true

@meta

Marks a file as "meta", meaning it is used for definitions and not for its functional Lua code. It is used internally by the language server for defining the built-in Lua libraries . If you are writing your own definition files, you will probably want to include this annotation in them. If you specify a name, it will only be able to be required by the given name. Giving the name _ will make it unable to be required. Files with the @meta tag in them behave a little different:

  • Completion will not display context in a meta file
  • Hovering a require of a meta file will show [meta] instead of its absolute path
  • Find Reference ignores meta files

Syntax

---@meta [name]

Examples

Mark Meta File
Lua
---@meta [name]

@module

Simulates require-ing a file.

Syntax

---@module '<module_name>'

Examples

"Require" a File
Lua
---@module 'http'

--The above provides the same as
require 'http'
--within the language server
"Require" a File and Assign to a Variable
Lua
---@module 'http'
local http

--The above provides the same as
local http = require 'http'
--within the language server

@nodiscard

Mark a function as having return values that cannot be ignored/discarded. This can help users understand how to use the function as if they do not capture the returns, a warning will be raised.

Syntax

---@nodiscard

Examples

Prevent Ignoring a Function's Returns
Lua
---@return string username
---@nodiscard
function getUsername() end

@operator

Provides type declarations for an operator metamethod .

Original Feature Request

Syntax

---@operator <operation>[(param_type)]:<return_type>

Note

This syntax differs slightly from the fun() syntax used for defining functions. Notice that the parentheses are optional here, so @operator call:integer is valid.

Examples

Declare __add Metamethod
Lua
---@class Vector
---@operator add(Vector): Vector

---@type Vector
local v1
---@type Vector
local v2

--> v3: Vector
local v3 = v1 + v2
Declare Unary Minus Metamethod
Lua
---@class Passcode
---@operator unm:integer

---@type Passcode
local pA

local pB = -pA
--> integer
Declare __call Metamethod
Note

It is recommended to instead use @overload to specify the call signature for a class.

Lua
---@class URL
---@operator call:string
local URL = {}

@overload

Define an additional signature for a function.

Syntax

---@overload fun([param: type[, param: type...]]): [return_value[,return_value]]

Note

If you are writing definition files, it is recommended to instead write multiple function definitions, one for each needed signature with its @param and @return annotations. This allows the functions to be as detailed as possible. Because the functions do not exist at runtime, this is acceptable.

Examples

Define Function Overload
Lua
---@param objectID integer The id of the object to remove
---@param whenOutOfView boolean Only remove the object when it is not visible
---@return boolean success If the object was successfully removed
---@overload fun(objectID: integer): boolean
local function removeObject(objectID, whenOutOfView) end
Define Class Call Signature
Lua
---@overload fun(a: string): boolean
local foo = setmetatable({}, {
	__call = function(a)
		print(a)
        return true
	end,
})

local bool = foo("myString")

@package

Mark a function as private to the file it is defined in. A packaged function cannot be accessed from another file.

Syntax

---@package

Examples

Mark a Function as Private to a Package
Lua
---@class Animal
---@field private eyes integer
local Animal = {}

---@package
---This cannot be accessed in another file
function Animal:eyesCount()
    return self.eyes
end

@param

Define a parameter/argument for a function. This tells the language server what types are expected and can help enforce types and provide completion. Putting a question mark (?) after the parameter name will mark it as optional, meaning nil is an accepted type. The type provided can be an @alias, @enum, or @class, of course, as well.

Syntax

---@param <name[?]> <type[|type...]> [description]

Examples

Simple Function Parameter
Lua
---@param username string The name to set for this user
function setUsername(username) end
Parameter Union Type
Lua
---@param setting string The name of the setting
---@param value string|number|boolean The value of the setting
local function settings.set(setting, value) end
Optional Parameter
Lua
---@param role string The name of the role
---@param isActive? boolean If the role is currently active
---@return Role
function Role.new(role, isActive) end
Variable Number of Parameters
Lua
---@param index integer
---@param ... string Tags to add to this entry
local function addTags(index, ...) end
Generic Function Parameter
Lua
---@class Box

---@generic T
---@param objectID integer The ID of the object to set the type of
---@param type `T` The type of object to set
---@return `T` object The object as a Lua object
local function setObjectType(objectID, type) end

--> boxObject: Box
local boxObject = setObjectType(1, "Box")

See @generic for more info.

Custom Type Parameter
Lua
---@param mode string
---|"'immediate'"  # comment 1
---|"'async'" # comment 2
function bar(mode) end
Literal Custom Type Parameter
Lua
local A = 0
local B = 1

---@param active integer
---| `A` # Has a value of 0
---| `B` # Has a value of 1
function set(active) end

Looking to do this with a table? You probably want to use @enum

@private

Mark a function as private to a @class. Private functions can be accessed only from within their class and are not accessible from child classes.

Syntax

---@private

Examples

Mark a function as private
Lua
---@class Animal
---@field private eyes integer
local Animal = {}

---@private
function Animal:eyesCount()
    return self.eyes
end

---@class Dog:Animal
local myDog = {}

---NOT PERMITTED!
myDog:eyesCount();

@protected

Mark a function as protected within a @class. Protected functions can be accessed only from within their class or from child classes.

Syntax

---@protected

Examples

Mark a function as protected
Lua
---@class Animal
---@field private eyes integer
local Animal = {}

---@protected
function Animal:eyesCount()
    return self.eyes
end

---@class Dog:Animal
local myDog = {}

---Permitted because function is protected, not private.
myDog:eyesCount();

@return

Define a return value for a function. This tells the language server what types are expected and can help enforce types and provide completion.

Syntax

---@return <type> [<name> [comment] | [name] #<comment>]

Examples

Simple Function Return
Lua
---@return boolean
local function isEnabled() end
Named Function Return
Lua
---@return boolean enabled
local function isEnabled() end
Named, Described Function Return
Lua
---@return boolean enabled If the item is enabled
local function isEnabled() end
Described Function Return
Lua
---@return boolean # If the item is enabled
local function isEnabled() end
Optional Function Return
Lua
---@return boolean|nil error
local function makeRequest() end
Variable Function Returns
Lua
---@return integer count Number of nicknames found
---@return string ...
local function getNicknames() end

@see

Allows you to reference a specific symbol (e.g. function, class) from the workspace. You can also reference symbols using markdown links instead.

Syntax

---@see <symbol>

Examples

Basic Usage
Lua
---Hovering the below function will show a link that jumps to http.get()

---@see http.get
function request(url) end

@source

Provide a reference to some source code which lives in another file. When searching for the definition of an item, its @source will be used instead.

Syntax

---@source <path>

Examples

Link to file using absolute path
Lua
---@source C:/Users/me/Documents/program/myFile.c
local a
Link to file using URI
Lua
---@source file:///C:/Users/me/Documents/program/myFile.c:10
local b
Link to file using relative path
Lua
---@source local/file.c
local c
Link to line and character in file
Lua
---@source local/file.c:10:8
local d

@type

Mark a variable as being of a certain type. Union types are separated with a pipe character |. The type provided can be an @alias, @enum, or @class as well. Please note that you cannot add a field to a class using @type, you must instead use @class .

Syntax

---@type <type>

Examples

Basic Type Definition
Lua
---@type boolean
local x
Array Type Definition
Lua
---@type string[]
local names
Dictionary Type Definition
Lua
---@type { [string]: boolean }
local statuses
Table Type Definition
Lua
---@type table<userID, Player>
local players
Union Type Definition
Lua
---@type boolean|number|"yes"|"no"
local x
Function Type Definition
Lua
---@type fun(name: string, value: any): boolean
local x

@vararg

Mark a function as having variable arguments. For variable returns, see @return.

Deprecated

This annotation has been deprecated and is purely for legacy support for EmmyLua annotations. Use @param instead.

Syntax

---@vararg <type>

Examples

Basic Variable Function Arguments
Lua
---@vararg string
function concat(...) end

@version

Mark the required Lua version for a function or @class.

Syntax

---@version [<|>]<version> [, [<|>]version...]

Possible version values:

  • 5.1
  • 5.2
  • 5.3
  • 5.4
  • JIT

Examples

Declare Function Version
Lua
---@version >5.2, JIT
function hello() end
Declare Class Version
Lua
---@version 5.4
---@class Entry

Last Modified:
